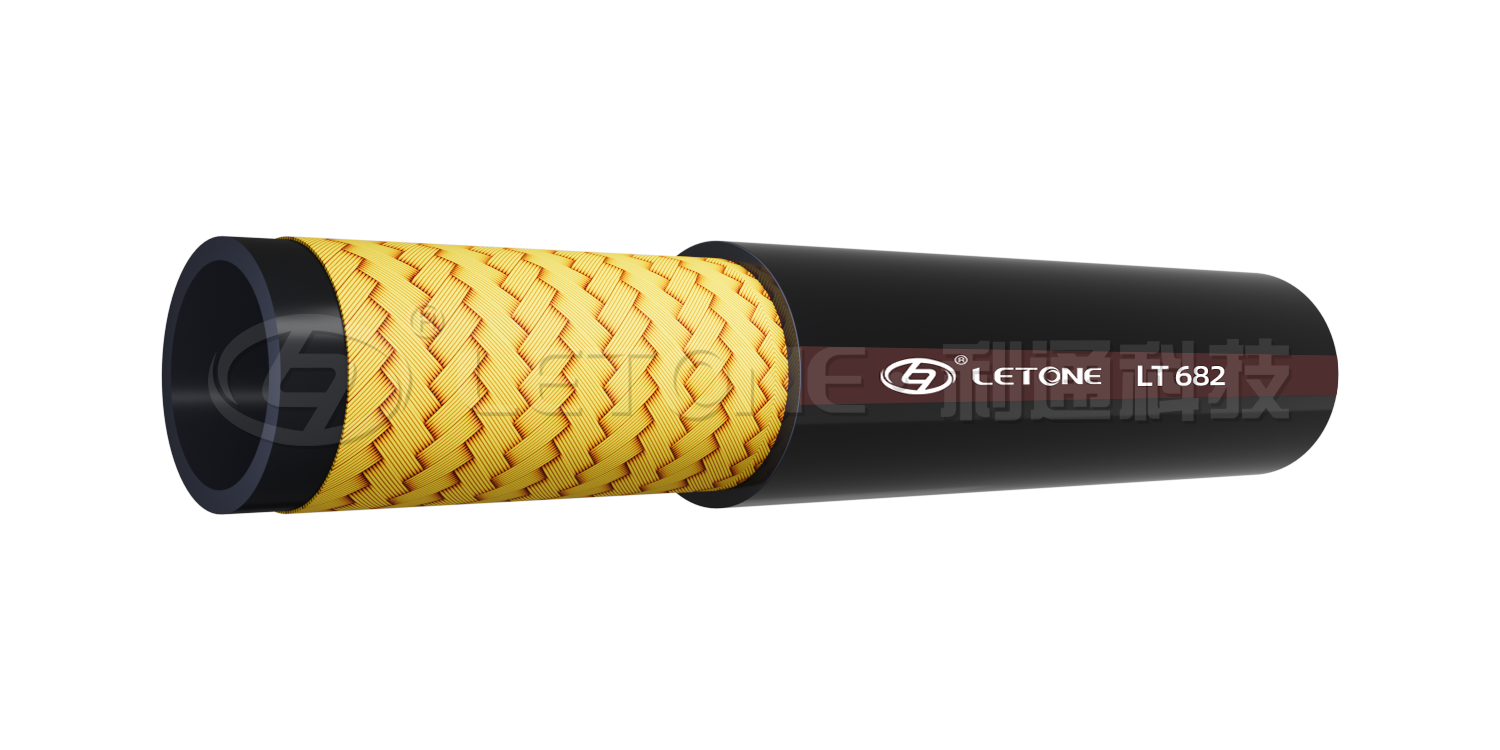

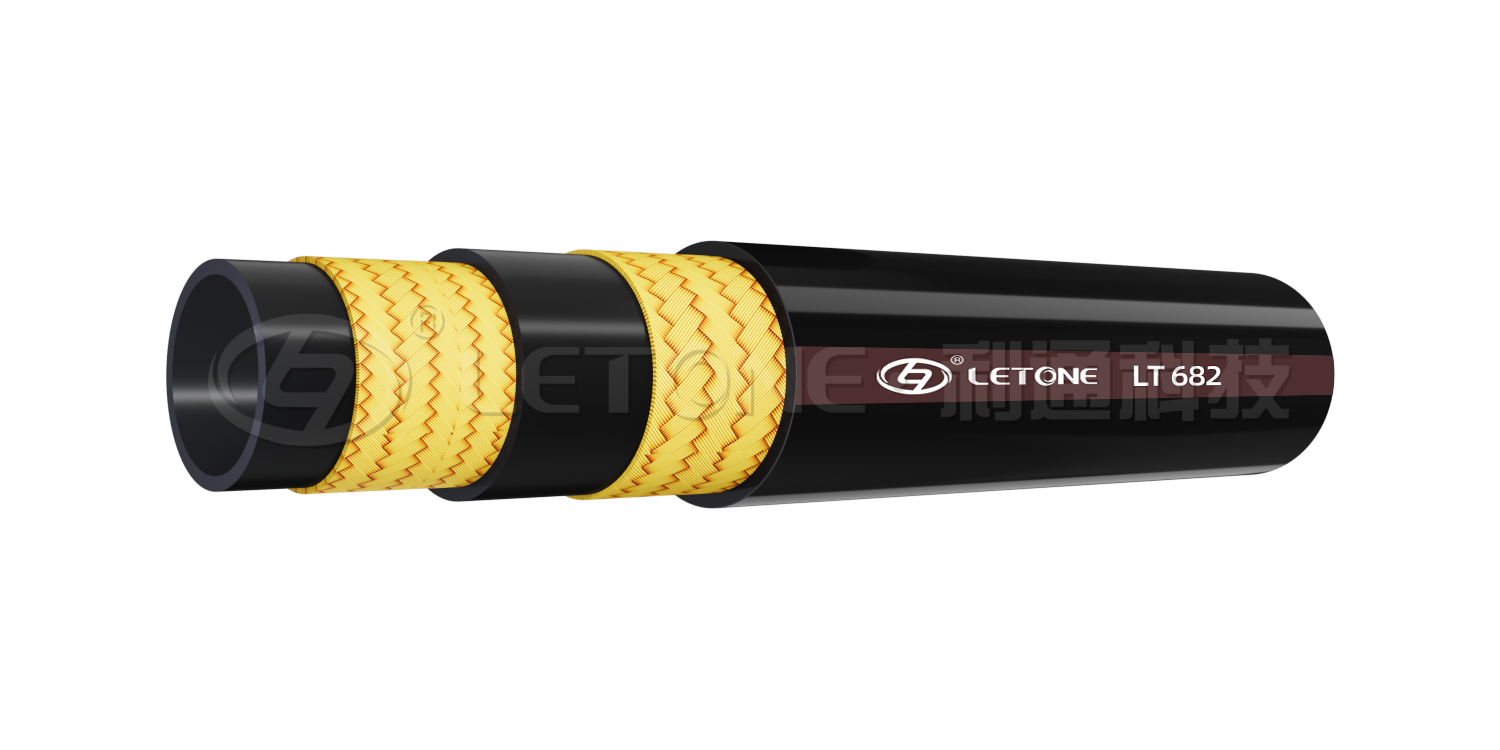

| 规格 (Dash) | 软管内径 I.D | 增强层外径 W.D | 软管外径 O.D. | 最大工作压力 . | 试验压力 P.P | 最小爆破压力 Min.B.P. | 最小弯曲半径 Min.B.R. | 参考重量 W.T | |||
| SIZE | 最小 Min | 最大 Max | 最小 Min | 最大 Max | 最小 Min | 最大 Max | Max.W.P | ||||
| IN | mm | mm | mm | mm | mm | mm | MPa | MPa | MPa | mm | kg/m |
| 3/16-1 | 4.6 | 5.4 | 9.0 | 10.0 | 11.5 | 12.9 | 25.0 | 50.5 | 100.0 | 90 | 0.18 |
| 1/4-1 | 6.2 | 7.0 | 10.6 | 11.6 | 14.6 | 16.0 | 22.5 | 45.0 | 90.0 | 100 | 0.27 |
| 5/16-1 | 7.7 | 8.5 | 12.5 | 13.5 | 16.2 | 17.6 | 21.5 | 43.0 | 85.0 | 115 | 0.33 |
| 3/8-1 | 9.3 | 10.3 | 14.5 | 15.7 | 18.5 | 19.9 | 18.0 | 36.0 | 72.0 | 130 | 0.40 |
| 1/2-1 | 12.3 | 13.5 | 17.5 | 19.0 | 21.8 | 23.4 | 16.0 | 32.0 | 64.0 | 180 | 0.50 |
| 5/8-1 | 15.5 | 16.7 | 20.6 | 22.2 | 24.7 | 26.3 | 13.0 | 26.0 | 52.0 | 200 | 0.58 |
| 3/4-1 | 18.6 | 19.8 | 24.3 | 25.5 | 28.7 | 30.3 | 10.5 | 21.0 | 42.0 | 240 | 0.73 |
| 1-1 | 25.0 | 26.4 | 31.9 | 33.1 | 36.3 | 37.9 | 8.8 | 17.5 | 35.0 | 300 | 1.04 |
| 1 1/4-1 | 31.4 | 33.0 | 39.2 | 40.8 | 43.3 | 45.7 | 6.3 | 15.0 | 25.0 | 420 | 1.28 |
| 1 1/2-1 | 37.7 | 39.3 | 44.9 | 46.5 | 49.8 | 52.2 | 5.0 | 10.0 | 20.0 | 500 | 1.51 |
| 2-1 | 50.4 | 52.0 | 58.7 | 60.3 | 64.3 | 66.7 | 4.0 | 8.0 | 16.0 | 630 | 2.20 |
| 3/16-2 | 4.6 | 5.4 | 10.6 | 11.6 | 14.6 | 16.0 | 41.5 | 83.0 | 165.0 | 90 | 0.33 |
| 1/4-2 | 6.1 | 7.0 | 12.6 | 13.6 | 16.3 | 17.7 | 40.0 | 80.0 | 160.0 | 100 | 0.42 |
| 5/16-2 | 7.7 | 8.5 | 14.1 | 15.1 | 18 | 19.4 | 35.0 | 70.0 | 140.0 | 115 | 0.47 |
| 3/8-2 | 9.3 | 10.3 | 16.3 | 17.5 | 20.3 | 21.7 | 33.0 | 66.0 | 132.0 | 130 | 0.60 |
| 1/2-2 | 12.3 | 13.5 | 19.4 | 20.6 | 23.4 | 25.0 | 27.5 | 55.0 | 110.0 | 180 | 0.73 |
| 5/8-2 | 15.5 | 16.7 | 22.2 | 23.8 | 26.6 | 28.2 | 25.0 | 50.0 | 100.0 | 200 | 0.85 |
| 3/4-2 | 18.6 | 19.8 | 26.2 | 27.8 | 30.6 | 32.2 | 21.5 | 43.0 | 85.0 | 240 | 1.03 |
| 1-2 | 25.0 | 26.4 | 33.6 | 34.8 | 37.7 | 39.3 | 16.5 | 32.5 | 65.0 | 300 | 1.44 |
| 1 1/4-2 | 31.4 | 33.0 | 43.6 | 45.0 | 48.0 | 50.4 | 12.5 | 25.0 | 50.0 | 420 | 2.14 |
| 1 1/2-2 | 37.7 | 39.3 | 49.6 | 51.4 | 54.4 | 56.8 | 9.0 | 18.0 | 36.0 | 500 | 2.50 |
| 2-2 | 50.4 | 52.0 | 62.3 | 64.7 | 67.0 | 69.4 | 8.0 | 16.0 | 32.0 | 630 | 3.07 |
加*项仅供参考，具体以管体为准
