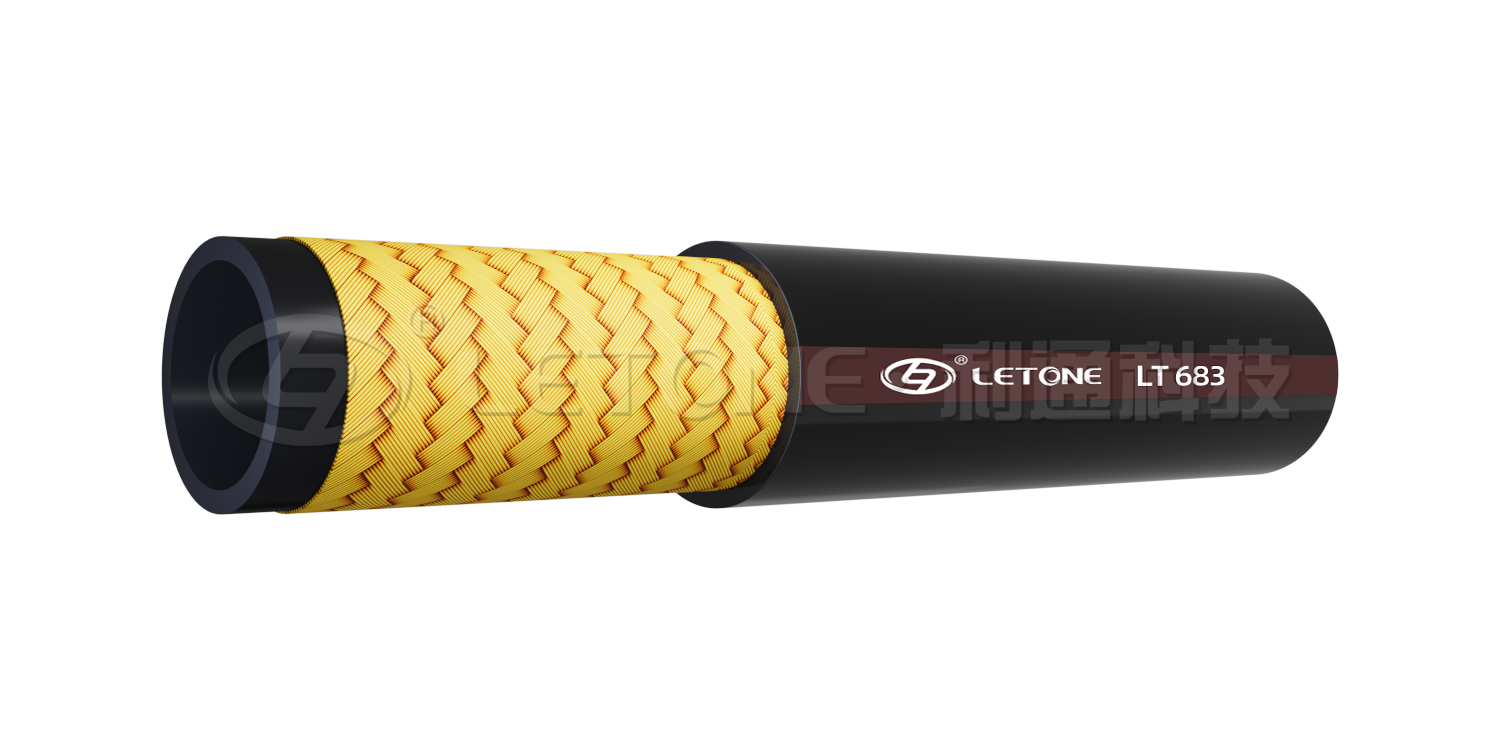

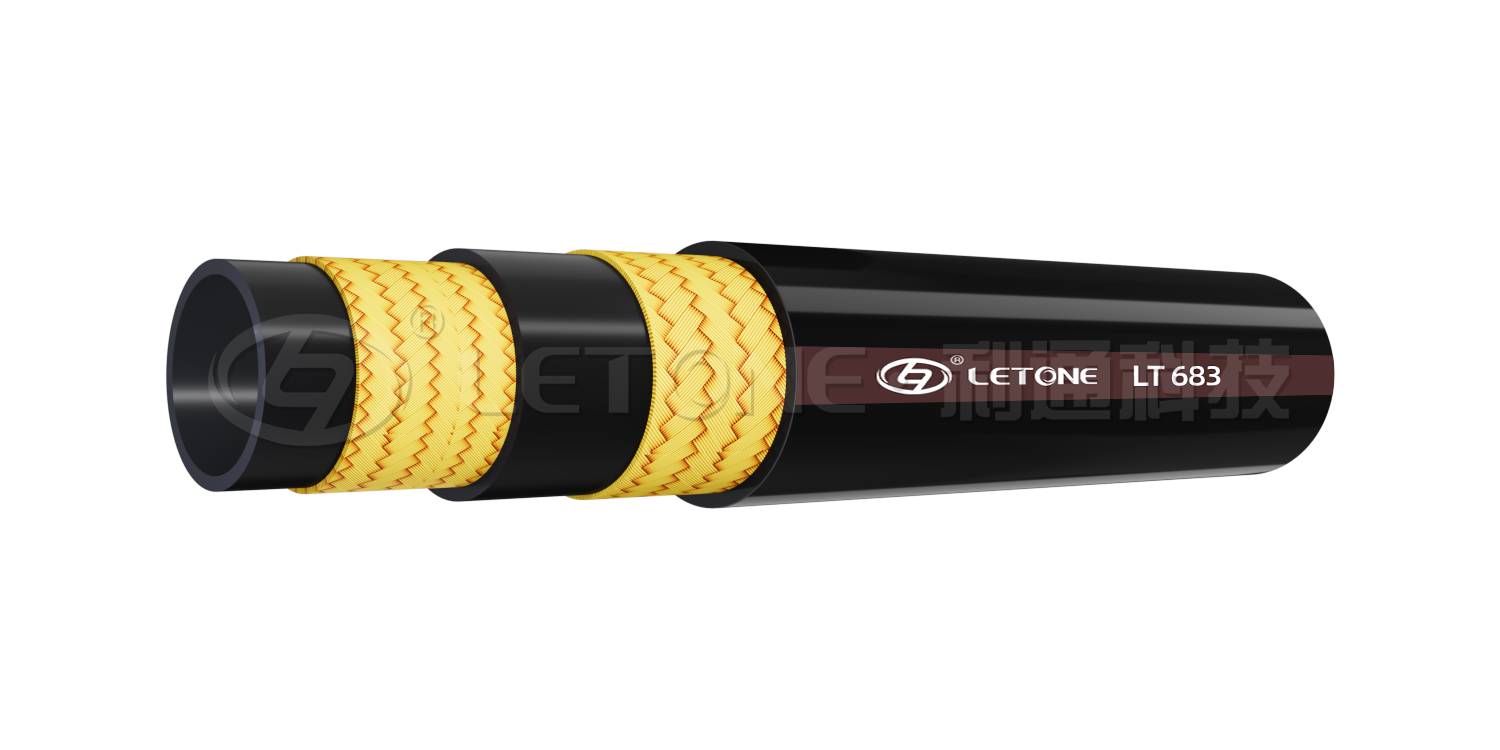

| 规格 (Dash) | 软管内径 I.D | 增强层外径 W.D | 软管外径 O.D. | 最大工作压力 . Max.W.P | 试验压力 P.P | 最小爆破压力 Min.B.P. | 最小弯曲半径 Min.B.R. | 参考重量 W.T | |||||||
| SIZE | 最小 Min | 最大 Max | 最小 Min | 最大 Max | 最小 Min | 最大 Max | |||||||||
| inch | mm | mm | mm | mm | mm | mm | MPa | psi | MPa | psi | MPa | psi | inch | mm | kg/m |
| 1/4-1 | 6.1 | 6.9 | 9.9 | 10.9 | 11.8 | 13.2 | 22.5 | 3260 | 45.0 | 6265 | 90.0 | 13050 | 2.95 | 75 | 0.18 |
| 5/16-1 | 7.7 | 8.5 | 11.2 | 12.2 | 13.1 | 14.5 | 21.5 | 3120 | 43.0 | 6235 | 86.0 | 12470 | 3.35 | 85 | 0.20 |
| 3/8-1 | 9.3 | 10.1 | 13.3 | 14.3 | 15.1 | 16.5 | 18.0 | 2610 | 36.0 | 5220 | 72.0 | 10440 | 3.54 | 90 | 0.27 |
| 1/2-1 | 12.3 | 13.5 | 16.4 | 17.6 | 18.9 | 20.3 | 16.0 | 2320 | 32.0 | 4640 | 64.0 | 9280 | 5.12 | 130 | 0.35 |
| 5/8-1 | 15.5 | 16.7 | 19.8 | 21.0 | 21.9 | 23.3 | 13.0 | 1885 | 26.0 | 3770 | 52.0 | 7540 | 5.91 | 150 | 0.42 |
| 3/4-1 | 18.6 | 19.8 | 23.1 | 24.5 | 25.6 | 27.2 | 10.5 | 1520 | 21.0 | 3045 | 42.0 | 6090 | 7.09 | 180 | 0.54 |
| 1-1 | 25.0 | 26.4 | 30.5 | 31.9 | 33.2 | 34.8 | 8.8 | 1280 | 17.6 | 2550 | 35.5 | 5100 | 9.06 | 230 | 0.78 |
| 1/4-2 | 6.1 | 6.9 | 11.2 | 12.2 | 12.9 | 14.3 | 40.0 | 5800 | 80 | 11600 | 160.0 | 23200 | 2.96 | 75 | 0.28 |
| 5/16-2 | 7.7 | 8.5 | 12.8 | 13.8 | 14.5 | 15.9 | 35.0 | 5075 | 70 | 10150 | 140.0 | 20300 | 3.35 | 85 | 0.32 |
| 3/8-2 | 9.3 | 10.1 | 14.9 | 15.9 | 16.8 | 18.2 | 33 | 4785 | 66 | 9570 | 132.0 | 19140 | 3.54 | 90 | 0.43 |
| 1/2-2 | 12.3 | 13.5 | 18.0 | 19.2 | 20.0 | 21.6 | 27.5 | 3990 | 55 | 7975 | 110.0 | 15950 | 5.12 | 130 | 0.52 |
| 5/8-2 | 15.5 | 16.7 | 21.4 | 22.6 | 23.2 | 24.8 | 25 | 3625 | 50 | 7150 | 100.0 | 14500 | 6.69 | 170 | 0.66 |
| 3/4-2 | 18.6 | 19.8 | 25.0 | 26.4 | 27.4 | 29.0 | 21.5 | 3120 | 43 | 6235 | 86.0 | 12470 | 7.87 | 200 | 0.83 |
| 1-2 | 25.0 | 26.4 | 32.4 | 33.8 | 34.5 | 36.1 | 16.5 | 2390 | 33 | 4785 | 66.0 | 9570 | 9.84 | 250 | 1.17 |
加*项仅供参考，具体以管体为准
