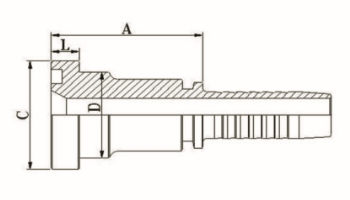

| 代 号 | 法兰型号 | 软 管 | 尺 寸 | ||||
| 公称内径 | 标 号 | A | C | D | L | ||
| 87612-08-08 | 1/2” | 12 | 08 | 47.5 | 31.7 | 24 | 7.75 |
| 87612-12-10 | 3/4” | 16 | 10 | 50.5 | 41.3 | 32 | 8.76 |
| 87612-12-12 | 3/4” | 20 | 12 | 51.5 | 41.3 | 32 | 8.76 |
| 87612-16-12 | 1” | 20 | 12 | 56 | 47.6 | 38 | 9.53 |
| 87612-16-16 | 1” | 25 | 16 | 52.5 | 47.6 | 38 | 9.53 |
| 87612-16-20 | 1” | 32 | 20 | 61 | 47.6 | 38 | 9.53 |
| 87612-20-16 | 1.1/4” | 25 | 16 | 65 | 54 | 44 | 10.29 |
| 87612-20-20 | 1.1/4” | 32 | 20 | 62 | 54 | 44 | 10.29 |
| 87612-24-20 | 1.1/2” | 32 | 20 | 75 | 63.5 | 51 | 12.57 |
| 87612-24-24 | 1.1/2” | 40 | 24 | 79 | 63.5 | 51 | 12.57 |
| 87612-32-24 | 2” | 40 | 24 | 85 | 79.4 | 67 | 12.57 |
| 87612-32-32 | 2” | 50 | 32 | 79 | 79.4 | 67 | 12.57 |
|
注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为87612-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87612-XX-XX. |
|||||||
